Machining examples
Our bed-type milling machines and travelling column machines are characterized through their versatility. Therefore a machining of different work piece sizes and types consisting of various materials is possible. Below you will find a small summary of work pieces which were machined on Stadler HDC bed-type milling machines and travelling column machines:

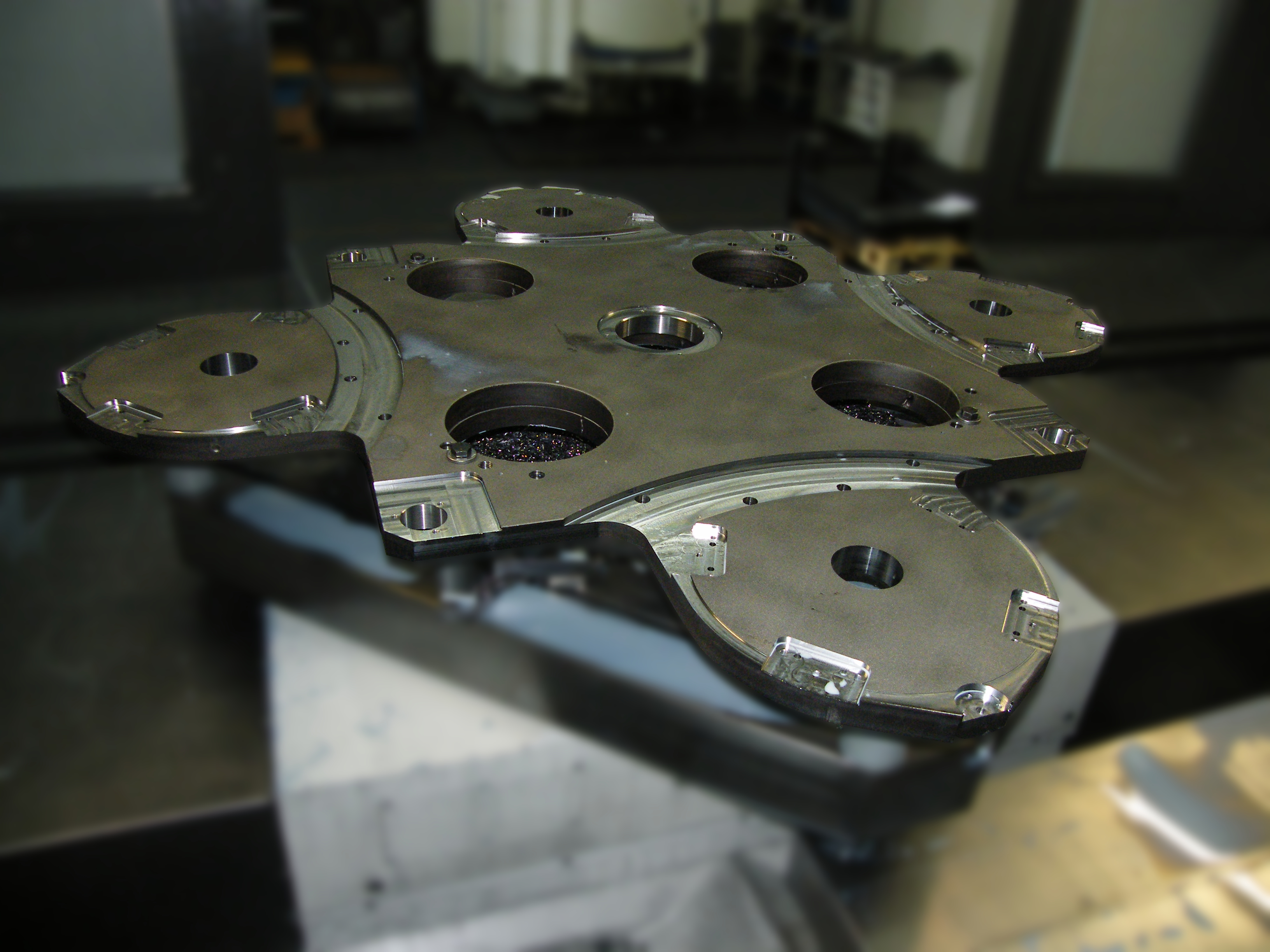

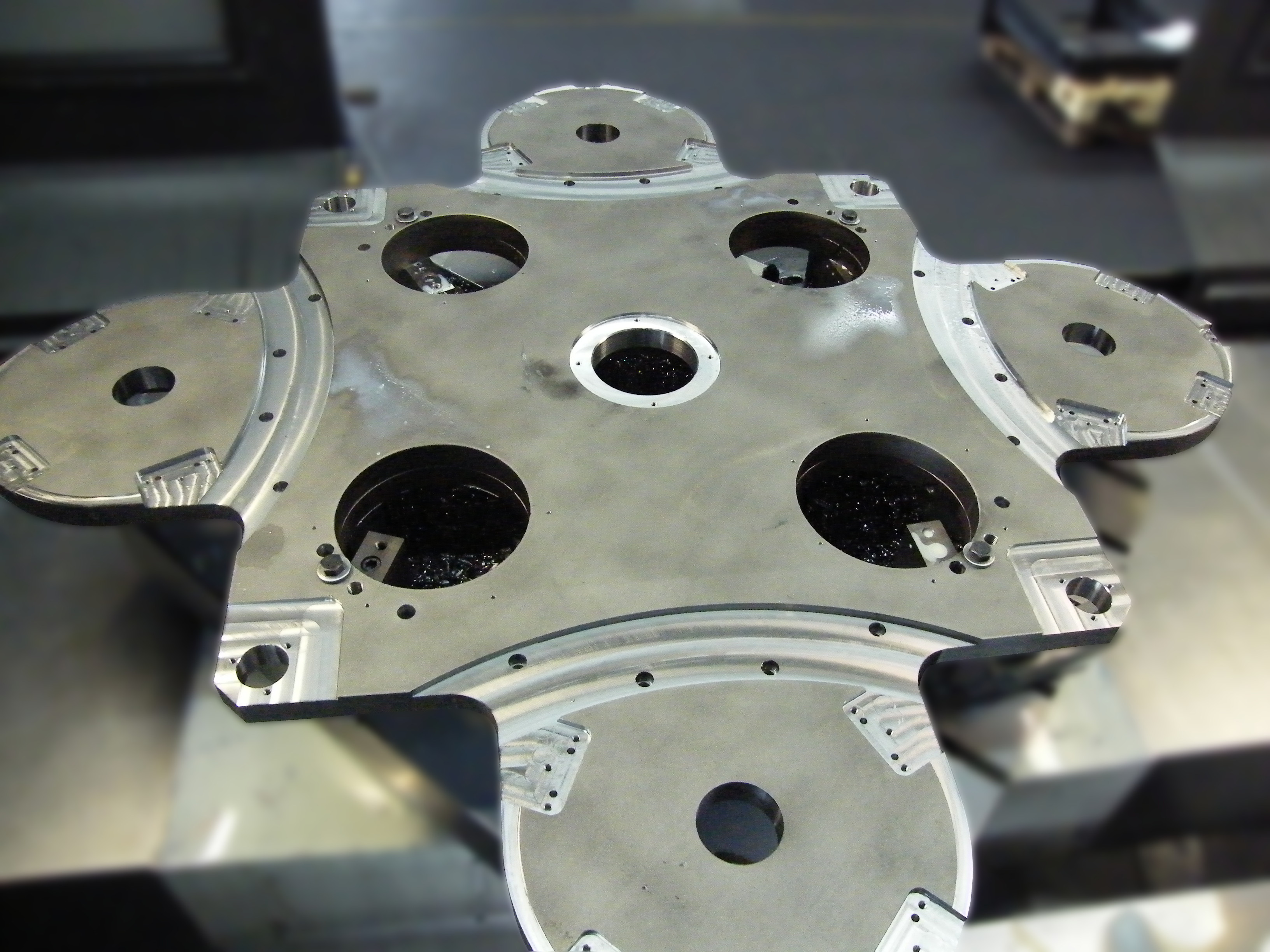

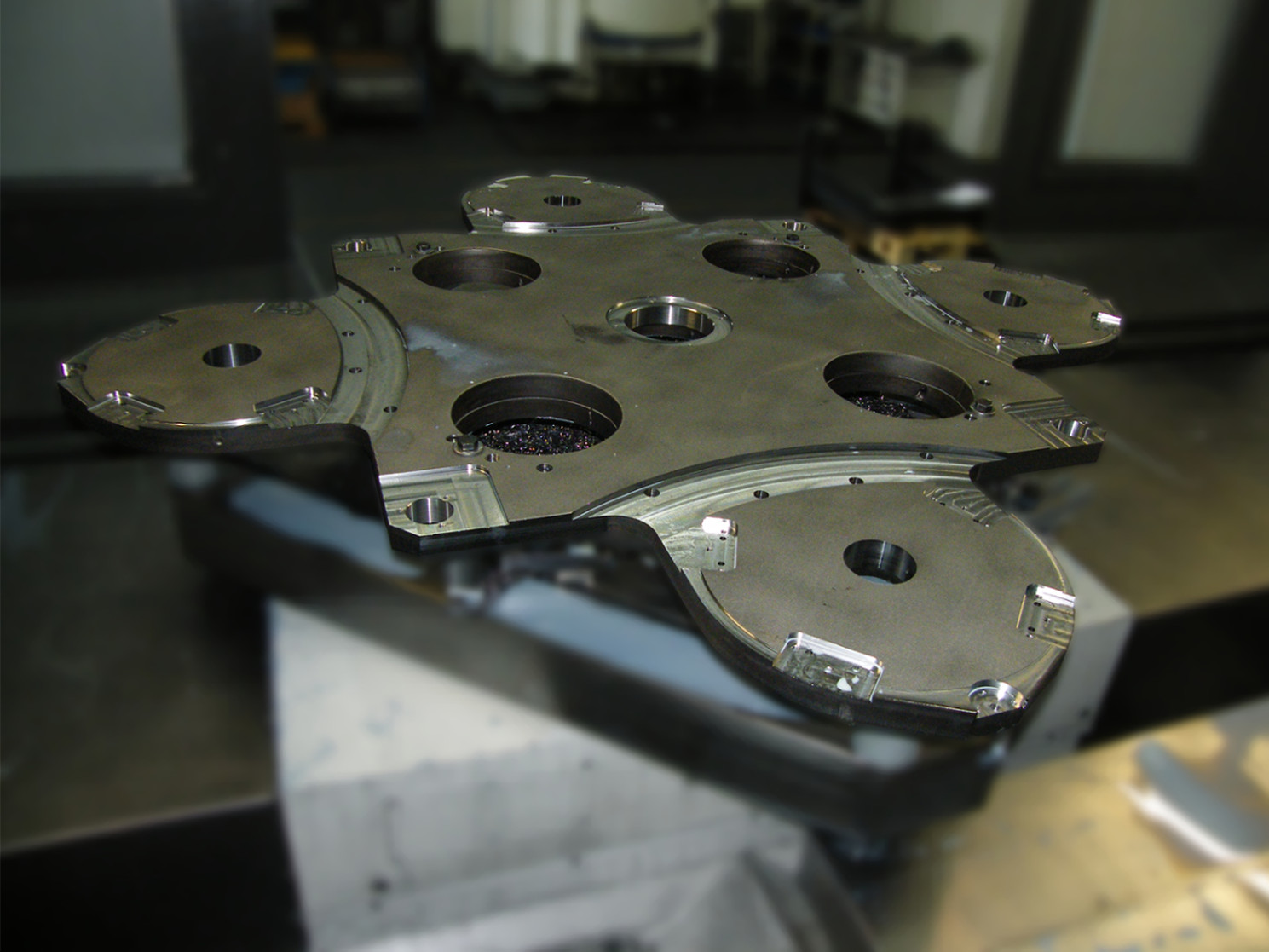

| Work piece: |
| Material: | St-52 |  |
 |
| Clamping: | 2 | ||
| Cutting data: | Face-millig cutter ∅50 r0,8 Z4 | ||
| RPM: | n = 1400 rpm | ||
| Feed: | Vf = 1120 mm/min | ||
| Cutting depth: | ap = 2 mm | ||
| Cutting speed: | 180 - 220 m/min | ||
| Processing time: | 6 hours | ||
| Finish quality: | Rz 25 |

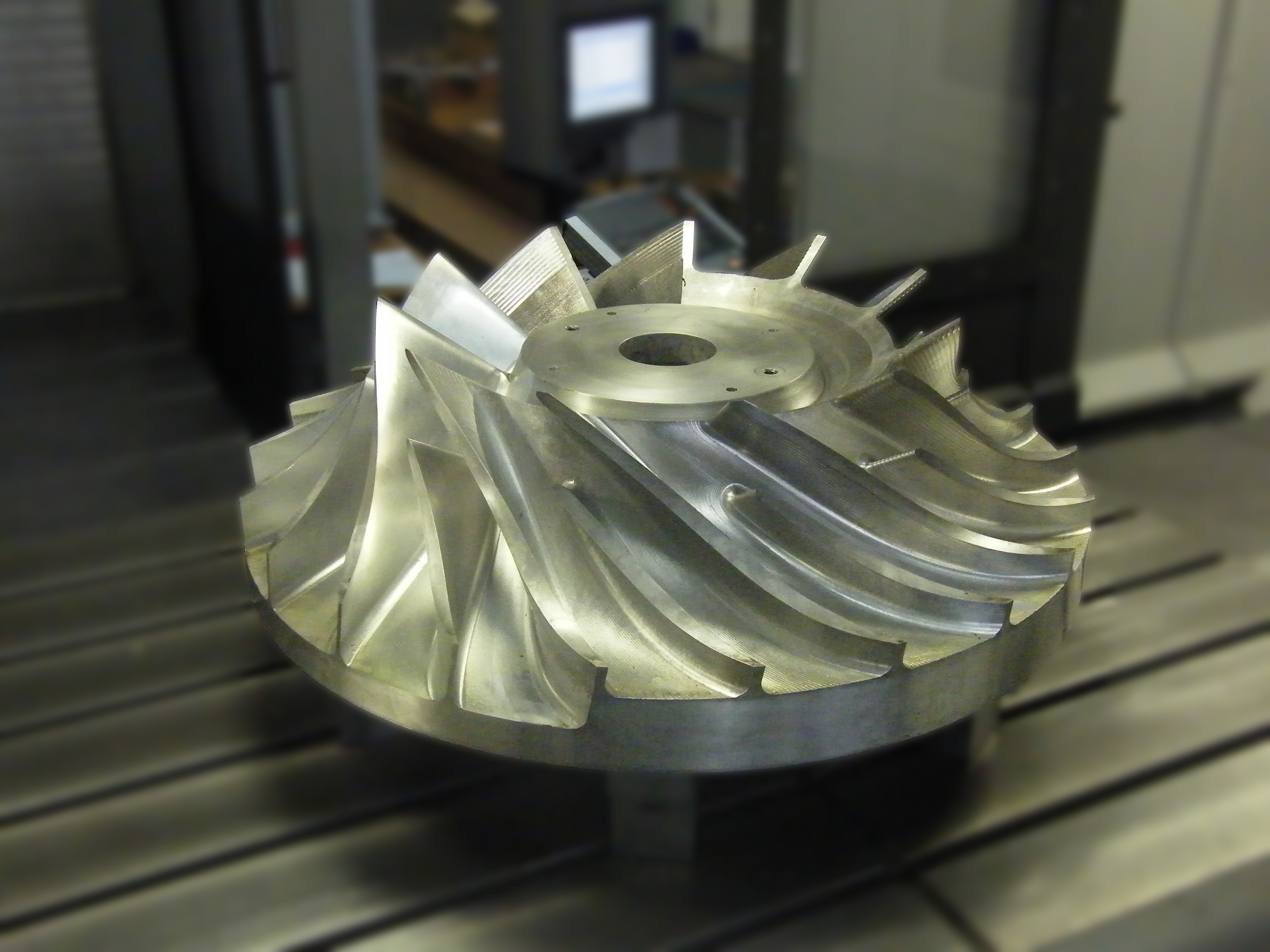

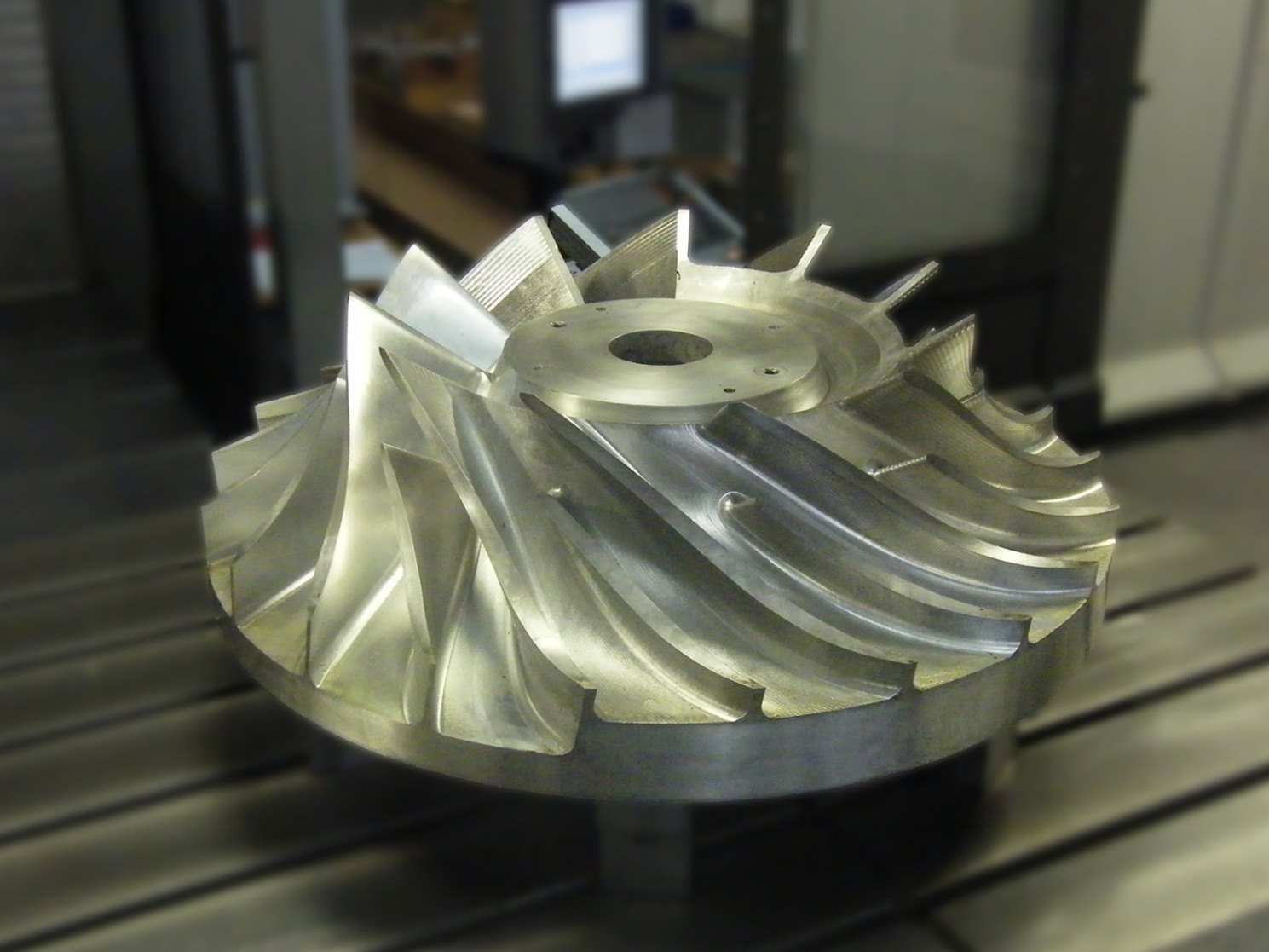

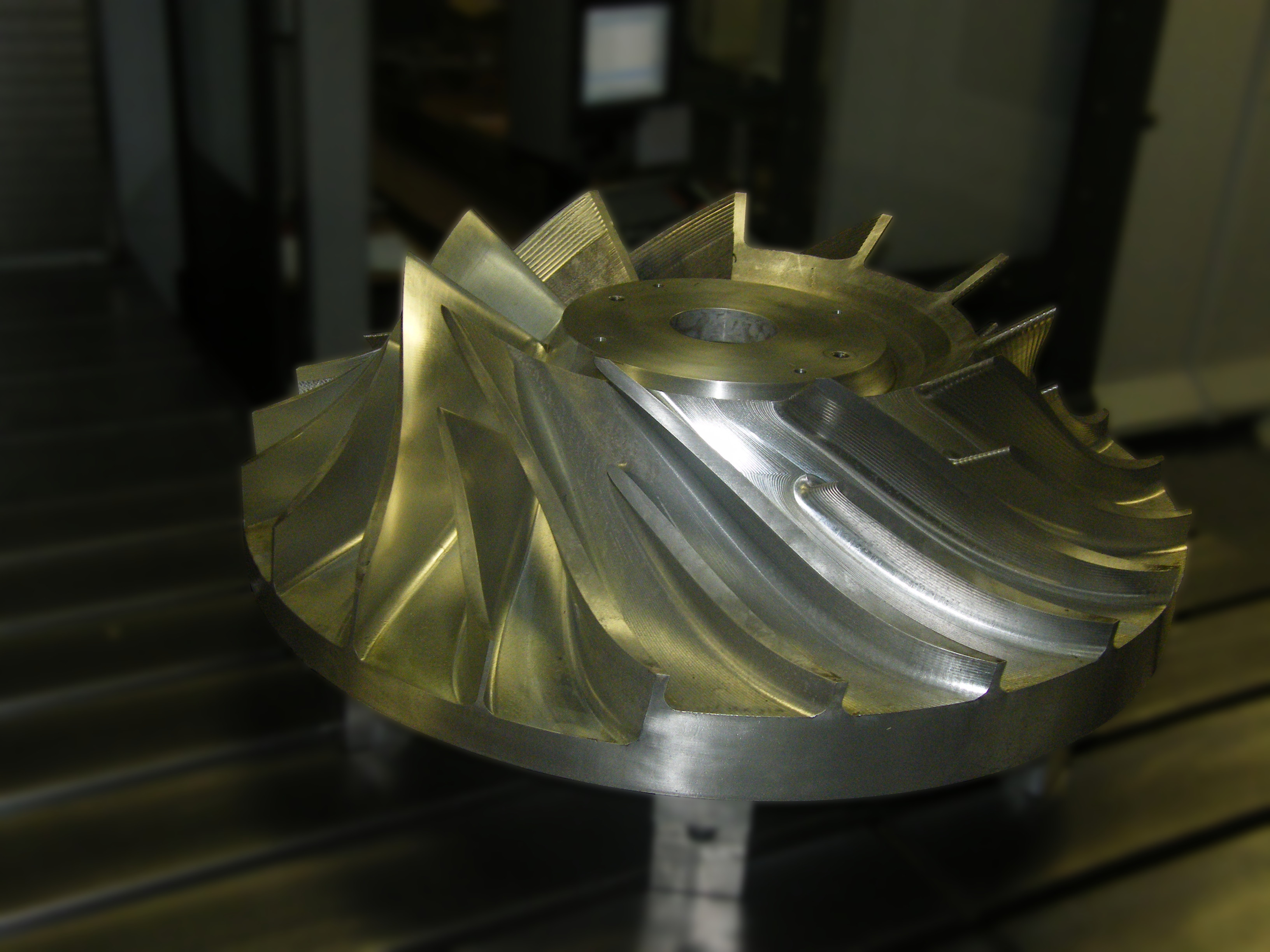

| Work piece: |
| Material: | AlMg4,5Mn |  |
 |
| Clamping: | 1 | ||
| Cutting data: | Radial cutter ∅25 Z2 | ||
| RPM: | n = 8000 rpm | ||
| Feed: | Vf = 3200 mm/min | ||
| Cutting depth: | ap = 5 mm | ||
| Cutting speed: | 500 - 1500 m/min | ||
| Processing time: | |||
| Finish quality: | Ra 1,6 |
